ACD600采用先进的控制策略实现了真正的高精度磁通矢量转矩控制，同步电机驱动与异步电机驱动一体化、转矩控制、速度控制的一体化。
并且采用模块化设计，内置PG及强大的速度控制、转矩控制、闭环控制、简易PLC、灵活的输入输出端子、脉冲频率给定
...
产品概述:
ACD600采用先进的控制策略实现了真正的高精度磁通矢量转矩控制，同步电机驱动与异步电机驱动一体化、转矩控制、速度控制的一体化。并且采用模块化设计，内置PG及强大的速度控制、转矩控制、闭环控制、简易PLC、灵活的输入输出端子、脉冲频率给定、停电和停机参数存储选择、频率给定通道与运行命令通道捆绑、主辅给定控制、摆频控制等。同时通过优化PWM控制技术和电磁兼容性整体设计，满足用户对应用场所的低噪音、地电磁干扰等环保要求。
600的独特功能：

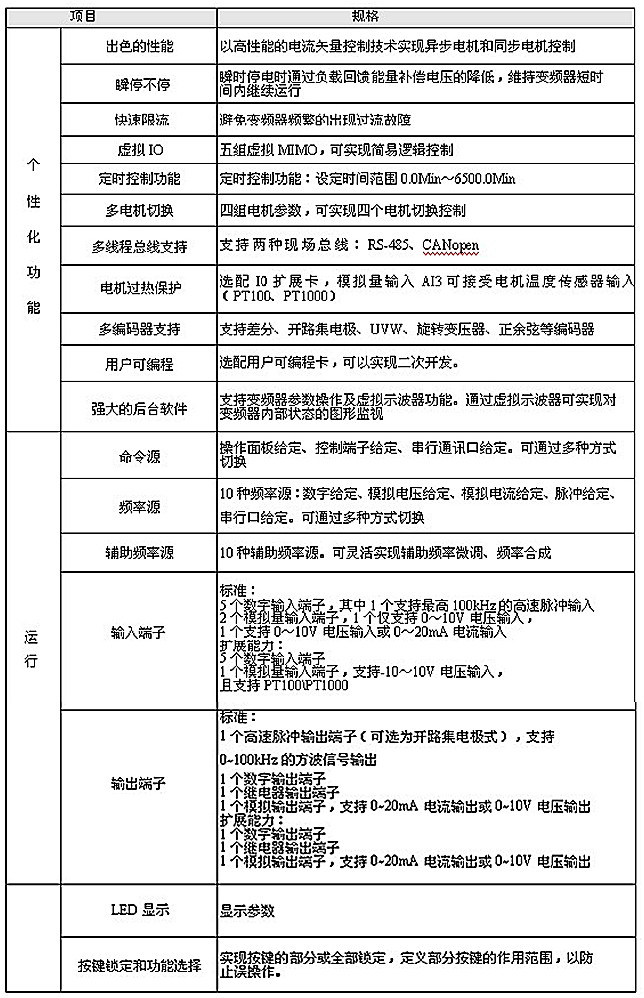

产品技术指标：
变频器系列型号与技术数据：
变频器型号
输入电压 额定容量 额定输入电流 额定输出电流 适配电机
（A） （A） （KW）
ACD600-2S0.4 | 单相/三相 220V范围： -15%~20% | 1.0 | 6.3 | 2.5 | 0.4 |
ACD600-2T0.4 | 1.0 | 3.2 | 2.5 | 0.4 | |
ACD600-2S0.7 | 1.9 | 11.5 | 5.0 | 0.75 | |
ACD600-2T0.7 | 6.3 | ||||
ACD600-2S1.5 | 2.7 | 15.7 | 7.0 | 1.5 | |
ACD600-4T1.5 | 9.0 | ||||
ACD600-2S2.2 | 3.8 | 27 | 9.6 | 2.2 | |
ACD600-4T2.2 | 12.5 | ||||
ACD600-4T0.7 | 三相380V范围： -15%~20% | 1.5 | 3.4 | 2.1 | 0.75 |
ACD600-4T1.5 | 3.0 | 5.0 | 3.8 | 1.5 | |
ACD600-4T2.2 | 4.0 | 5.8 | 5.1 | 2.2 | |
ACD600-4T4.0 | 5.9 | 10.5 | 9.0 | 4.0 | |
ACD600-4T5.5 | 8.9 | 14.6 | 13.0 | 5.5 | |
ACD600-4T7.5 | 11.0 | 20.5 | 17.0 | 7.5 | |
ACD600-4T11 | 17.0 | 26.0 | 25.0 | 11 | |
ACD600-4T15 | 21.0 | 35.0 | 32.0 | 15 | |
ACD600-4T18.5 | 24.0 | 38.5 | 37.0 | 18.5 | |
ACD600-4T22 | 30.0 | 46.5 | 45.0 | 22 | |
ACD600-4T30 | 40.0 | 62.0 | 60.0 | 30 | |
ACD600-4T37 | 57.0 | 76.0 | 75.0 | 37 | |
ACD600-4T45 | 69.0 | 92.0 | 91.0 | 45 | |
ACD600-4T55 | 85.0 | 113.0 | 112.0 | 55 | |
ACD600-4T75 | 三相380V范围： -15%~20% | 114.0 | 157.0 | 150 | 75 |
ACD600-4T90 | 134.0 | 180.0 | 176.0 | 90 | |
ACD600-4T110 | 160.0 | 214.0 | 210.0 | 110 | |
ACD600-4T132 | 192.0 | 256.0 | 253.0 | 132 | |
ACD600-4T160 | 231.0 | 307.0 | 304.0 | 160 | |
ACD600-4T200 | 250.0 | 385.0 | 377.0 | 200 | |
ACD600-4T220 | 280.0 | 430.0 | 426.0 | 220 | |
ACD600-4T250 | 355.0 | 468.0 | 465.0 | 250 | |
ACD600-4T280 | 396.0 | 525.0 | 520.0 | 280 | |
ACD600-4T315 | 445.0 | 590.0 | 585.0 | 315 | |
ACD600-4T355 | 500.0 | 665.0 | 650.0 | 355 | |
ACD600-4T400 | 565.0 | 785.0 | 725.0 | 400 | |
ACD600-4T500 | 630.0 | 883.0 | 820.0 | 500 |
键盘操作说明：
接线方法：
机箱尺寸及安装一览表：
尺寸一览表:
壳体 | 机箱 | 规格型号 | 尺寸（mm） | |||||
A | B | H | W | D | d | |||
塑壳机箱 | E22 | ACD600-2T0.4GB | 118.0 | 172.5 | 185.0 | 105.5 | 150.0 | 5.0 |
ACD600-2S0.4GB | ||||||||
ACD600-2T0.75GB | ||||||||
ACD600-2S0.75GB | ||||||||
ACD600-2T1.5GB | ||||||||
ACD600-2S1.5GB | ||||||||
ACD600-4T0.75GB | ||||||||
ACD600-4T1.5GB | ||||||||
ACD600-4T2.2GB | ||||||||
ACD600-2T2.2GB | 170.0 | |||||||
ACD600-2S2.2GB | ||||||||
ACD600-4T4.0GB | ||||||||
E75 | ACD600-4T5.5LB | 160.0 | 235.0 | 247.0 | 148.0 | 186.0 | 5.5 | |
ACD600-4T5.5GB | ||||||||
ACD600-4T7.5LB | ||||||||
ACD600-4T7.5GB | ||||||||

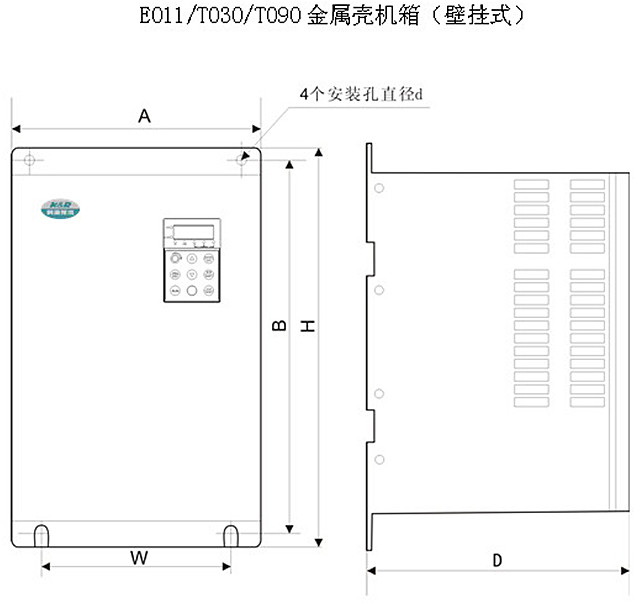

壁挂式金属壳机箱 | E011 | ACD600-4T11LB | 210.0 | 322.0 | 336.0 | 150.0 | 200.0 | 7.0 |
ACD600-4T11GB | ||||||||
ACD600-4T15LB | ||||||||
ACD600-4T15GB | ||||||||
ACD600-4T18.5LB | ||||||||
壁挂式金属壳机箱 | E018 | ACD600-4T18.5G | 290.0 | 429.0 | 455.0 | 274.0 | 230.0 | 6 |
ACD600-4T22L | ||||||||
ACD600-4T22G | ||||||||
ACD600-4T30L | ||||||||
ACD600-4T30G | ||||||||
ACD600-4T37L | ||||||||
E037 | ACD600-4T37G | 320.0 | 536.0 | 555.0 | 230.0 | 228.8 | 10.0 | |
ACD600-4T45L | ||||||||
ACD600-4T45G | ||||||||
ACD600-4T55L | ||||||||
E055 | ACD600-4T55G | 410.0 | 611.0 | 634.0 | 320.0 | 236.1 | 12 | |
ACD600-4T75L | ||||||||
ACD600-4T75G | ||||||||
ACD600-4T90L | ||||||||

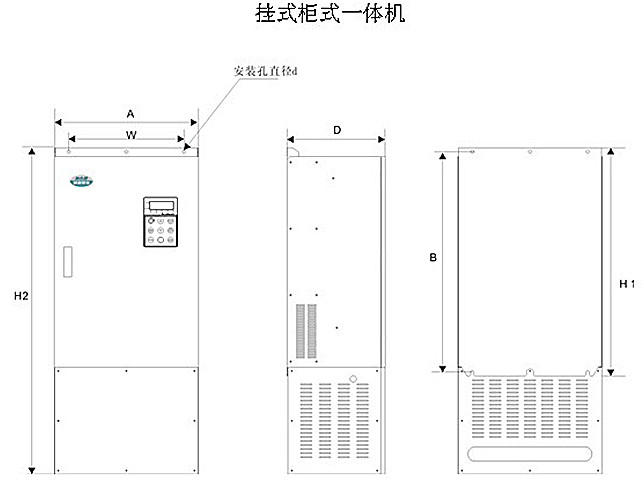

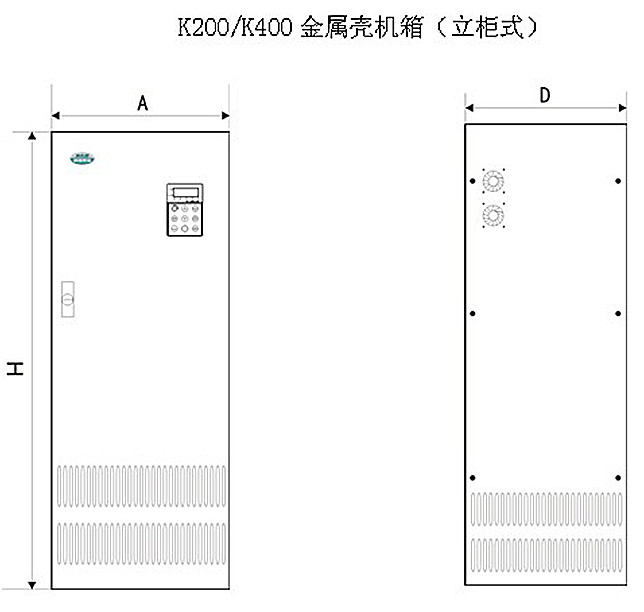

挂式柜式一体机 | E090 | ACD600-4T90G | 460 | 631 | H1：588 | 320 | 342 | 12 |
ACD600-4T110L | ||||||||
ACD600-4T110G | H2：988 | |||||||
ACD600-4T132L | ||||||||
E185 | ACD600-4T132G | 561 | 823 | H1：847 | 420 | 350 | 14 | |
ACD600-4T160L | ||||||||
ACD600-4T160G | ||||||||
ACD600-4T200L | H2：1141 | |||||||
ACD600-4T200G | ||||||||
ACD600-4T220L | ||||||||
E220 | ACD600-4T220G | 740 | 930 | H1：956 | 520 | 377 | 14 | |
ACD600-4T250L | ||||||||
ACD600-4T250G | ||||||||
ACD600-4T280L | H2：1356 | |||||||
ACD600-4T280G | ||||||||
ACD600-4T315L | ||||||||
注：H1为壁挂机高度，H2为柜机高度
ACD600变频器选配件：
注：H1为壁挂机高度，H2为柜机高度

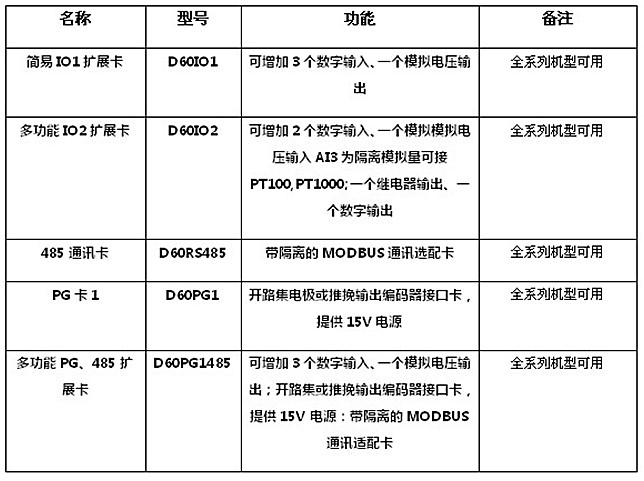

ACD600变频器选配件：
适用变频器型号：

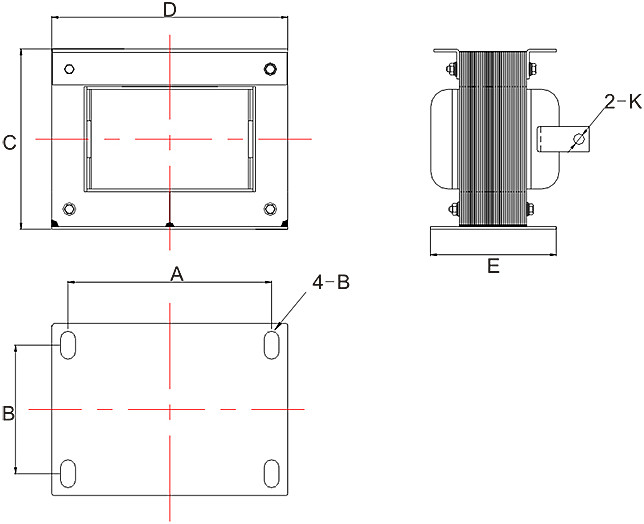

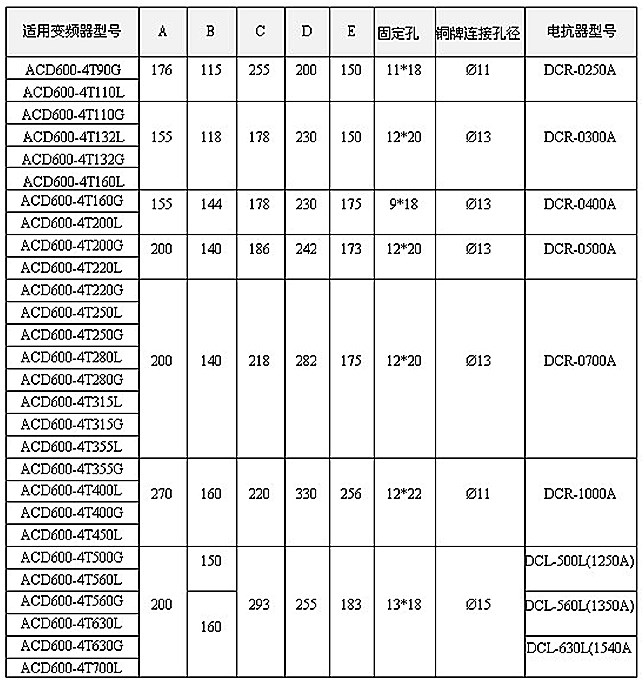

科润技术ACD600系列变频器，90KW以上功率，全部采用标配直流电抗器，发货前时用单独的包装木箱随机器一起发货。用户在安装时需要把变频器主回路接线端子P2和P1之间的短路铜排拆掉，然后把直流电抗器按在P2和P1之间，电抗器端子与变频器端子P2、P1之间连接线没有极性，装上直流电抗器后，P2和P1之间的短路铜排不再时用。
